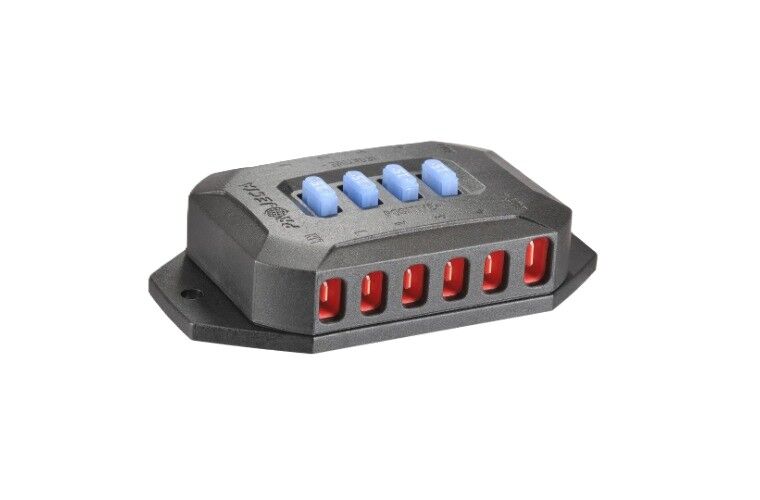

Projecta IQMR4 Smart Relay – 4 Channel LIN Bus Intelligent Control

The Projecta IQMR4 Smart Relay is a multi-channel, LIN bus-compatible relay module, purpose-built for advanced 12V power automation in automotive, caravan, 4WD, and marine setups. Designed as part of the Projecta Intelli-IQ ecosystem, the IQMR4 enables intelligent control of up to four separate accessories or circuits, each with independent switching and advanced scheduling via the Projecta IQ App or IQD2 smart display.

Please note:
The IQMR4 requires a Projecta Intelli-IQ Controller - such as the IQD2 - to function. All configuration, operation, and monitoring is managed through the IQD2 or compatible Intelli-IQ controller, using either the display or the Projecta IQ App.

With a maximum output of 10A per channel (30A total), the IQMR4 allows for flexible configuration, supporting custom schedules, delay-off timers, advanced lighting control (including brightness and flash patterns), and linked/conditional switching. It’s the ideal solution for anyone looking to add smart automation, energy management, or scene control to modern vehicles and installations.

Key Features

• Requires IQD2 Controller: Needs a Projecta Intelli-IQ Controller (e.g. IQD2) for setup and operation

• Four Independent Channels: Control four accessories individually (10A per channel, 30A total)

• Seamless Intelli-IQ Integration: LIN bus connectivity for easy integration with Projecta IQD2 and IQ App

• Flexible Switching Modes: Use as ON/OFF switches, daily timers, or with programmable off-delay

• Advanced Lighting Control: Adjust brightness in 10% increments and choose from multiple flash/scene patterns

• Linked & Conditional Switching: Link channels for automatic switching logic (e.g. spotlight/floodlight transitions)

• Custom Scheduling: Program channels to turn on/off at specific times and days

• Comprehensive Protection: Over/under voltage, thermal shutdown, short circuit, and individual channel fuses

• Plug-and-Play Setup: Simple wiring and automatic device detection in Projecta LIN environments

• Real-Time Monitoring: View and control all channels, statuses, and alerts via the Projecta IQ App or IQD2 display

Technical Specifications

• Input Voltage Range: 9–16V DC

• Maximum Output (per channel): 10A

• Maximum Output (total): 30A

• Standby Current: Less than 10mA

• Operating Temperature: -10°C to +85°C

• IP Rating: IP20 (for indoor/dry location)

• LIN Bus Support: Version 2.1

• Product Size: 102 x 56 x 23.3 mm

• Weight: 90g

• Protection: Over/under voltage, thermal shutdown, short circuit, reverse connection, 15A fuse per channel

• Communication: LIN bus interface
