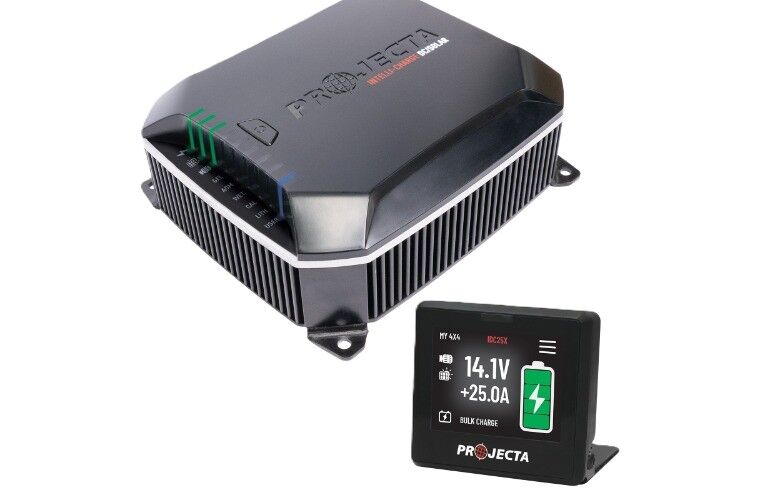

Projecta IDC25XIQ 25A DC-DC Battery Charger with Intelli-IQ Support


The Projecta IDC25XIQ is a compact, intelligent 25A dual battery charger built for reliability and control in demanding Australian conditions. Designed for under-bonnet or remote installations, it handles charging from both solar and alternator sources simultaneously and supports advanced Bluetooth monitoring when paired with Projecta's Intelli-IQ system. Whether you're parked in the sun or driving down the street, the IDC25XIQ ensures your auxiliary battery is charged accurately, efficiently, and safely - no matter the environment.

Key Features:

• Reliable 25A Output
  Capable of delivering a full 25 amps (when input voltage is above 11V), the IDC25XIQ suits mid-sized auxiliary battery systems in 4WDs, caravans, and camper trailers. It maintains a consistent charge whether you’re using solar, alternator, or both.

• Dual Input Charging with Solar Priority
  Automatically prioritises solar power to reduce alternator load and fuel consumption. If solar input is insufficient, the IDC25XIQ draws from both sources simultaneously for maximum charge performance.

• Multi-Chemistry Support
  Compatible with LiFePO₄, AGM, Gel, Wet, and Calcium batteries. Each chemistry has its own tailored charging profile - including equalisation mode for Calcium and a lithium wake-up feature for BMS-protected batteries.

• MPPT Solar Charging
  Integrated Maximum Power Point Tracking (MPPT) ensures maximum solar efficiency, even in low light. No external solar regulator is required - even with portable solar panels (regulators must be bypassed).

• Fully Sealed IP68/IP69K Housing
  Designed to withstand water, dust, vibration, and high-pressure washing, the IDC25XIQ can be confidently mounted under the bonnet or on chassis rails in off-road environments.

• Smart Alternator Ready
  Includes ignition override functionality for seamless operation with variable-voltage alternators, commonly found in modern vehicles with stop-start systems.

• Temperature & Voltage Compensation
  Built-in temperature sensors and voltage drop compensation allow precise charging regardless of weather or cable length—crucial for long-distance installations in utes and camper trailers.

• Intelli-IQ Compatible
  Connects with the optional Projecta IQD2 display and Intelli-IQ app for real-time monitoring, setup, diagnostics, and firmware updates via Bluetooth.

• Parallel Charging Capable
  Can be installed in parallel with another IDC25X to provide a combined 50A output for larger battery systems or future expansion.

• Comprehensive Protection
  Includes reverse polarity detection, over-voltage and under-voltage shutdown, thermal derating, short circuit detection, and soft-start functionality. It’s built to protect both your batteries and your investment.

Technical Specifications:


Installation Notes:

Recommended Cable Sizes (up to 12m runs):

• Alternator Input: 8mm² (8 B&S)
• Solar Input: 8mm² (8 B&S)
• Aux Battery Output: 8mm² (8 B&S)
• Ground: 8mm² (8 B&S)
• Ignition/LIN/TEMP/LED: 1–1.5mm²

Fusing Requirements:

• Install 50A fuses on both input and output cables as close to the battery terminals as possible. Use fuse holders like FK25A if desired.

Smart Alternator Connection:

• For vehicles with variable-voltage alternators, connect the ignition input to a switched ignition source and include a 1–2A fuse.

Solar Panel Setup:

• Connect panels directly to the solar input terminal. If using a portable solar panel with a built-in regulator, bypass the regulator to allow the IDC25XIQ’s MPPT to operate.

Temperature Sensor:

• Use the included 5m temperature loom for accurate thermal compensation. Attach the sensor to the battery case, not the terminal.

External LED Status Output:

• Optional. The pink LED wire provides ~5mA to power an indicator LED (not included). Connect LED positive to the wire and ground the negative side.

Ideal Applications

• Dual battery systems in 4WDs and Utes
• Camper trailers and small caravans
• Off-grid weekenders or touring setups
• Smart alternator vehicles
• Marine dual battery systems
• Lithium upgrade conversions
