Product Description

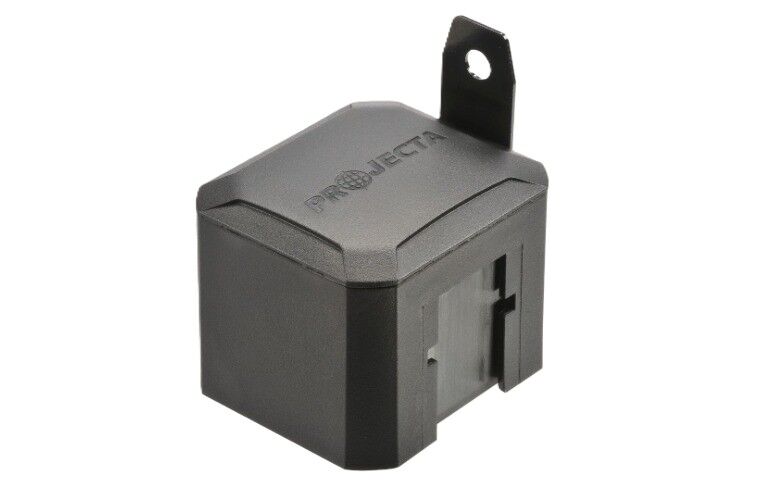

The Projecta IQR040 Smart Relay is a high-current, single-channel LIN bus relay designed for seamless integration with Projecta’s Intelli-IQ ecosystem.    Supporting up to 40A at 12V (15A at 24V), the IQR040 is perfect for advanced power management in vehicles, 4WDs, caravans, and marine applications. Remotely control, automate, or schedule any accessory with advanced safety protections, digital current monitoring, and multiple programmable modes.


Key Features

  • 40A switching at 12V (15A at 24V) – single high-capacity channel

  • Seamless integration with Projecta IQD2 and Intelli-IQ App

  • Standard ON/OFF, delay timer, schedule, driving light, and VSR modes

  • Digital fuse and current monitoring for safety

  • Advanced protections: overcurrent, over/under voltage, thermal, short circuit

  • Rugged IP68/IP69K housing for harsh environments

  • Real-time voltage/current monitoring and alerts

  • Simple installation and plug-and-play setup


Technical Specifications



Parameter          IQR040
Input Voltage           9–32V DC
Max Output           40A @ 12V, 15A @ 24V
Standby Current          <10mA
Operating Temp          -10°C to +85°C
IP Rating          IP68 & IP69K
Protection          Over/under voltage, overcurrent, short circuit, reverse connection, thermal shutdown
Dimensions          59 x 52 x 46.5 mm
Weight         150g
Relay Channels         1
LIN Bus         Version 2.1
VSR Mode        12V systems only
Warranty60
Model # IQR040
