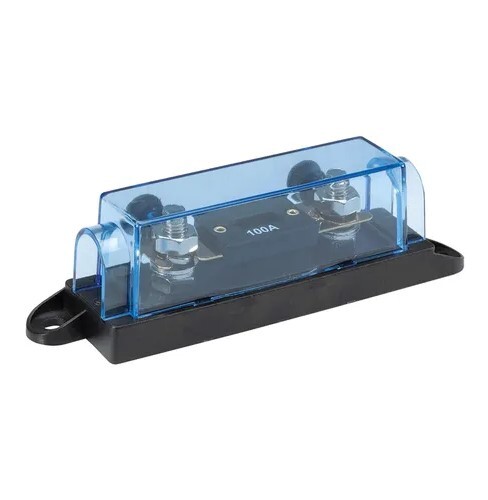

Narva 54419 - ANL Fuse Holder

Narva • Bolt-down ANL holder • Suits ANL strip fuses • 32V DC • Fuse not included

Product Overview

The Narva 54419 is a heavy-duty ANL fuse holder for high-current 12V and 24V circuits. It accepts standard ANL bolt-down fuses and provides a low resistance, stud-mounted interface for ring lugs, with a protective clear cover for quick visual checks. Install near the battery to protect the entire downstream cable run feeding inverters, winches and other heavy accessories.

Key Features

  • Suits ANL bolt-down strip fuses for robust, low resistance protection
  • Heavy-duty stud posts accept ring lugs for secure terminations
  • Clear protective cover helps shield connections and aids inspection
  • Base-mount design keeps high-current installs tidy and serviceable
  • Fuse not included so you can fit the exact value your system specifies

Technical Specifications

Brand
Narva
Part Number
54419
Holder Type
ANL bolt-down fuse holder
Fuse Compatibility
ANL strip fuses
Included Fuse
None
Voltage Rating
32V DC
Max Current Capability
Up to the selected ANL fuse and cabling limits
Terminals
Stud posts for ring lugs
Cover
Clear protective cover included
Mounting
Base mount, near-battery recommended
Pack Quantity
1
Warranty
12 months

Selection and Fitment Tips

  • Use ANL fuses only: Not compatible with ANS, MIDI or blade fuse formats.
  • Size the fuse to the cable: Choose a value that does not exceed the continuous ampacity of the smallest cable in the circuit and suits device inrush and running current.
  • Mount close to the source: Position near the battery or power supply to protect the entire cable length.
  • Terminations: Use quality ring lugs, ensure clean flat contacts, torque hardware to spec and recheck after initial run-in.

Why Choose Narva 54419?

It delivers a rugged ANL interface with low resistance connections and a clear, serviceable layout, while letting you select the exact ANL rating required for your system.

Model # 54419
Barcode # 09314464544194

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Does Narva 54419 include a fuse?
No. 54419 is the holder only, supplied without a fuse so you can fit the exact ANL rating your system requires.
What fuse type fits this holder?
ANL bolt-down strip fuses only. It is not compatible with ANS, MIDI or blade fuses.
What voltage systems is it suitable for?
Rated 32V DC, suitable for 12V and 24V automotive and marine circuits when used with a correctly rated ANL fuse.
Where should I mount the holder in my circuit?
Mount as close to the battery or power source as practical so the entire downstream cable run is protected from short circuits.
How do I choose the correct ANL fuse rating for 54419?
Select a value that protects the smallest cable in the circuit and matches the equipment’s inrush and running current. Do not exceed the cable’s continuous ampacity.
What terminations does the holder use for wiring connections?
Heavy-duty stud posts for ring lugs, providing a secure, low resistance bolt-down connection.
Is a cover included with Narva 54419?
Yes. A clear protective cover is included to help shield connections and allow visual inspection of the fuse.
What are typical applications for this holder?
Near-battery protection for high-current feeds such as inverters, winches, DC distribution and other heavy accessories.
Any installation tips to keep resistance and heat low at the connection?
Use the correct cable gauge, clean and flatten contact faces, torque hardware to spec and recheck after the first run-in period.
What is the warranty on Narva 54419 and what is included in the pack?
Warranty is 12 months. Pack includes one ANL fuse holder with clear cover. No fuse is included.
