Narva 52014 – Micro Blade Fuse Assortment (71-Piece Kit)

Narva • Micro (ATM-LP) blade fuses • 32V DC rating • Includes fuse puller

Product Overview

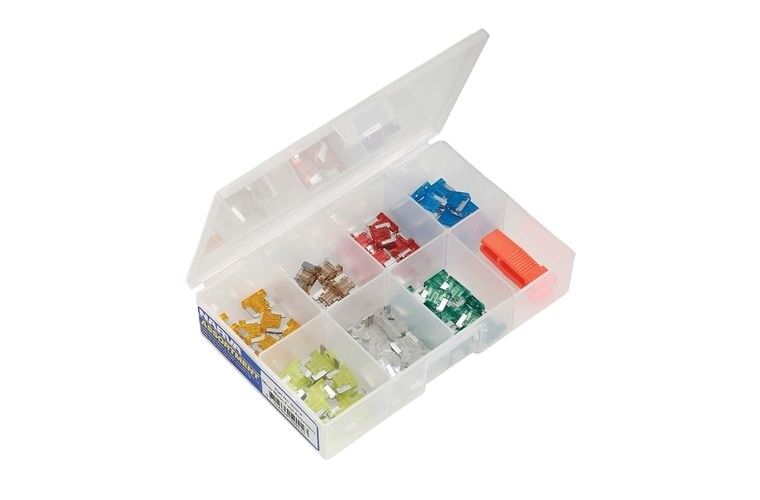

Narva 52014 is a workshop-ready assortment of micro blade fuses covering the full everyday range for modern vehicles and 4WDs. The kit includes multiple pieces from 5A to 30A plus a dedicated Narva micro/mini fuse puller for quick roadside fixes or bench diagnostics. It’s ideal for service counters, field technicians and glovebox spares where compact, fast-acting protection is required on 12/24V systems.

Use this kit to replace like-for-like blown micro fuses in tight late-model fuse panels. Colour coding aligns with standard values for quick identification.

Key Features

  • Comprehensive 71-piece micro blade assortment from 5A to 30A
  • Includes Narva micro/mini fuse puller (P/No. 54492BL) for safe extraction
  • Compact micro (ATM-LP) footprint suits late-model fuse boxes
  • Fast-acting protection for ECUs, sensors, lighting and low-draw accessories
  • Organised kit for workshops, mobile techs and glovebox spares

Technical Specifications

Brand
Narva
Series / Part No.
Micro Blade Assortment / 52014
Fuse Type
Micro blade (fast-acting)
Form Factor
Micro (ATM-LP), approx. 11 × 9 mm
Voltage Rating
32V DC (automotive)
Contents
10×5A, 10×7.5A, 10×10A, 10×15A, 10×20A, 10×25A, 10×30A + 1×fuse puller
Mounting
Push-fit into micro blade slots/holders
Pack Quantity
71 pieces + puller
Operating Temp
Up to ~125 °C typical for automotive blade fuses
Warranty
12 months

How to Choose the Right Fuse (from the Assortment)

  • Match the amperage: Replace with the same value as the blown fuse to maintain circuit protection.
  • Verify voltage rating: Use fuses rated for 32V DC or higher on 12/24V systems.
  • Check form factor: Micro (ATM-LP) only - mini/standard blades will not fit micro slots.
  • Consider inrush: Fast-acting micro fuses suit electronics and low-inrush loads; diagnose causes if motor loads are blowing fuses.
  • Inspect the circuit: A repeated blow indicates a fault - trace wiring/components before re-energising.

Why Choose Narva 52014?

A complete, genuine Narva micro-fuse coverage in one tidy kit, with the correct values technicians reach for most often. Including the dedicated puller speeds safe removal in tight spaces and reduces the risk of damaging the fuse box.

Model # 52014
Barcode # 09314464520143
Unit Of Measure Roll

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is included in the Narva 52014 micro blade fuse assortment?
A 71-piece kit of micro (ATM-LP) blade fuses covering common ratings from 5A to 30A, plus a fuse puller for safe removal and installation.
Which vehicles and systems does this kit suit?
Modern passenger cars, 4WDs, light commercial and marine equipment that use micro blade fuses on 12V or 24V systems.
Are these fuses fast-acting or time-delay?
They are fast-acting micro blade fuses suited to ECUs, sensors, instrument circuits and other low-inrush loads.
What voltage are the fuses rated for?
Up to 32V DC, which covers typical 12V and 24V automotive systems when used in the correct micro blade holder or panel.
How do I choose the right fuse from the kit for my circuit?
Match the original amperage value and form factor. Replace like-for-like unless the manufacturer specifies otherwise. If fuses keep blowing, diagnose the fault rather than upsizing.
What do the fuse colours mean in this assortment?
Automotive colour coding helps quick ID: e.g., orange 5A, brown 7.5A, red 10A, blue 15A, yellow 20A, clear 25A, green 30A. Always confirm the printed amperage on the fuse.
Will these micro fuses fit a mini or standard blade slot?
No. This kit contains micro (ATM-LP) fuses only. Mini (ATM) and standard (ATO/ATC) blade sizes are different and not interchangeable.
What is the purpose of the included fuse puller and how do I use it safely?
The puller grips the micro fuse body so you can extract it from tight panels without damaging terminals. Turn the ignition off, pull the fuse straight out, seat the replacement fully, and test the circuit.
What are typical applications for the values in this kit (5–30A)?
Lower values (5–10A) suit ECUs, sensors and comms modules; mid values (15–20A) suit lighting and accessories; higher values (25–30A) may protect higher-draw circuits as designed by the vehicle manufacturer.
What is the warranty and are there storage tips for spares?
Warranty is 12 months. Store fuses dry and clean, keep them in the organiser tray, and avoid crushing the blades to maintain reliable contact when installed.
