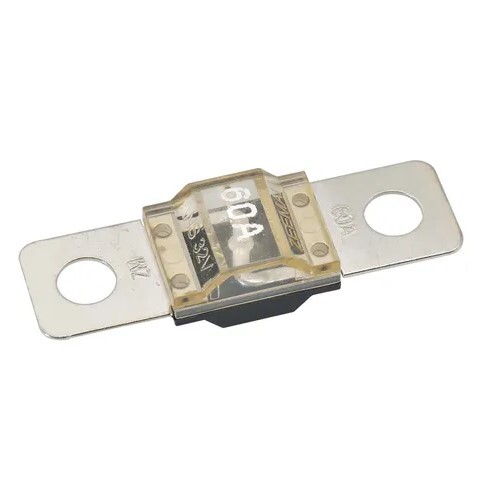

Narva 53808 - ANS Bolt-Down Fuse 60A

Narva • ANS bolt-down strip fuse • 32V DC rating • Size 41 x 12 mm • Copper alloy, tin plated

Product Overview

Narva 53808 is a 60A ANS bolt-down fuse for high-current 12V and 24V circuits. The compact ANS footprint delivers low resistance and reliable protection for accessories like inverters, audio amplifiers, DC distribution and under-bonnet feeds. Install in a suitable ANS holder close to the power source for best protection and minimal voltage drop.

Key Features

  • ANS bolt-down design for secure, low-resistance connections
  • 60A rating suited to medium and high draw circuits
  • 32V DC automotive rating for 12V and 24V systems
  • Copper alloy element with tin plating and inspection window
  • Compact 41 x 12 mm body for engine bay and near-battery mounting
  • Clear amp value printing for quick identification

Technical Specifications

Brand
Narva
Series / Part No.
ANS / 53808
Fuse Type
Bolt-down strip fuse (ANS)
Form Factor
ANS mini-ANL style
Current Rating
60A
Voltage Rating
32V DC
Construction
Copper alloy, tin plated, inspection window
Dimensions
41 x 12 mm
Mounting
Bolt-down to ANS holder or block
Pack Quantity
1
Warranty
12 months

Selection and Fitment Tips

  • Match amperage: Replace like-for-like at 60A unless the equipment maker specifies otherwise.
  • Match the holder: Use an ANS compatible holder or block. ANS fuses do not fit MIDI, ANL or blade holders.
  • Location: Mount the holder close to the battery to protect the entire cable run.
  • Repeated blows: If a replacement opens again, diagnose wiring faults or overload rather than increasing the fuse rating.

Why Choose Narva 53808?

Dependable, low-resistance protection in a compact bolt-down format that suits modern accessory installs where space and efficiency matter. Ideal for safeguarding medium to high current circuits while keeping voltage drop low and serviceability simple.

Model # 53808
Barcode # 09314464538087

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is Narva 53808?
A 60A ANS bolt-down strip fuse for high-current 12V and 24V automotive and marine circuits.
What is the voltage rating?
32V DC. Suitable for 12V and 24V systems when installed in an appropriate ANS holder or block.
Which holders or blocks does it fit?
Use Narva ANS holders or distribution blocks that accept ANS fuses, such as 54470 or 54472. It will not fit blade, MIDI or ANL holders.
Where should I mount the holder in the system?
As close to the battery or power source as practical to protect the entire cable run from short circuits.
What are typical uses for a 60A ANS fuse?
Mid-power inverters, DC distribution feeds, aftermarket audio amplifiers and accessory circuits that specify 60A protection.
How do I select the correct fuse rating for my cable size?
Fuse to protect the smallest cable in the circuit. Choose a rating at or below the cable’s continuous ampacity and suitable for the device’s inrush and running current.
What if a new 60A fuse blows soon after replacement?
Do not upsize. Repeated operation indicates a fault or overload. Inspect for shorts, damaged insulation, undersized cable or incorrect equipment settings.
Is there a correct orientation when installing an ANS fuse?
ANS fuses are non-directional electrically. Install with clean, flat contact surfaces and tighten hardware securely for a low resistance connection.
What are the body materials and size of the fuse?
Copper alloy with tin plating and an inspection window. Approximate body size is 41 x 12 mm.
How many fuses are in the pack and what is the warranty?
Pack quantity is 1. Warranty is 12 months.
