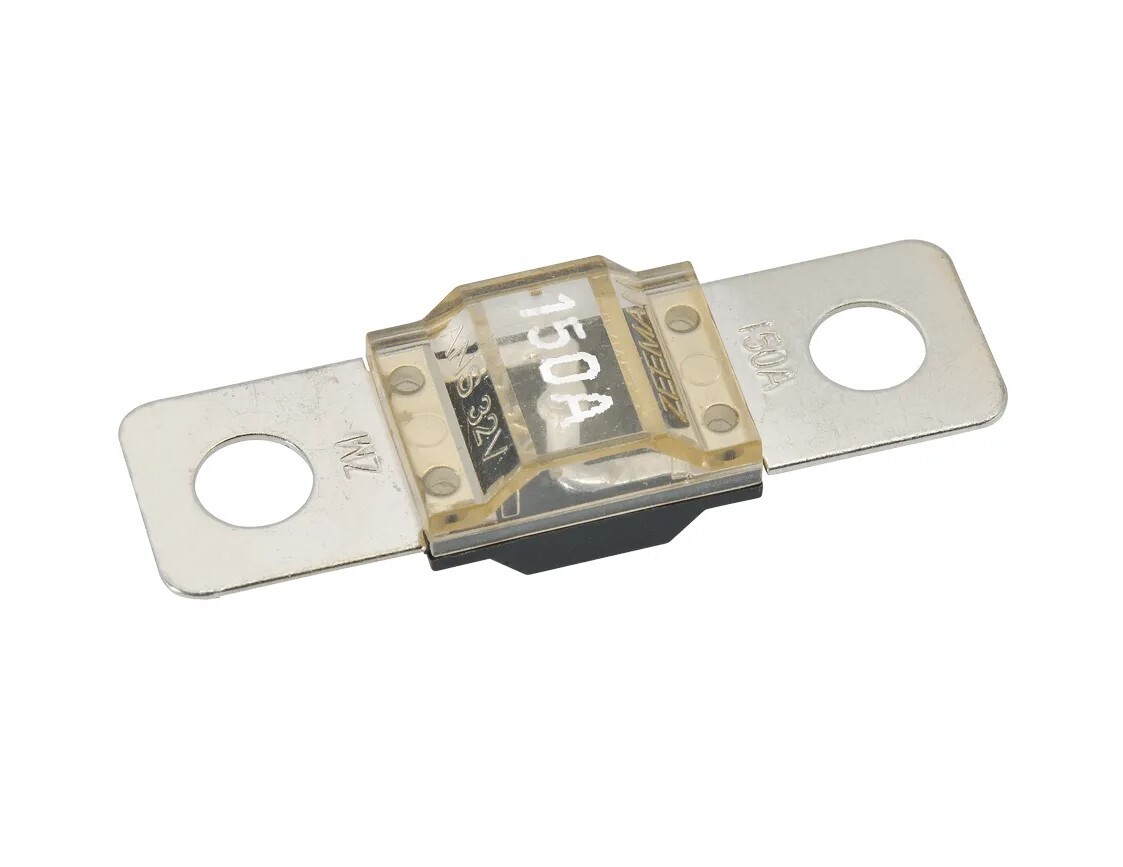

Narva 53816 - ANS Bolt-Down Fuse 150A

Narva • ANS bolt-down strip fuse • 32V DC rating • Approx. 41 x 12 mm • Copper alloy, tin plated

Product Overview

Narva 53816 is a 150A ANS bolt-down fuse for protecting high-current 12V and 24V circuits. The compact ANS footprint provides low resistance and reliable protection for loads like inverters, DC distribution, winches and high-power accessory feeds. For best protection and minimal voltage drop, install in a suitable ANS holder close to the power source.

Key Features

  • ANS bolt-down design for secure, low-resistance connections
  • 150A rating for heavy-draw accessory and supply circuits
  • 32V DC rating for 12V and 24V systems
  • Copper alloy element with tin plating and inspection window
  • Compact body for engine bay and near-battery mounting
  • Clear amp value marking for quick identification

Technical Specifications

Brand
Narva
Series / Part No.
ANS / 53816
Fuse Type
Bolt-down strip fuse (ANS)
Form Factor
ANS mini-ANL style
Current Rating
150A
Voltage Rating
32V DC
Construction
Copper alloy, tin plated, inspection window
Dimensions
Approx. 41 x 12 mm
Mounting
Bolt-down to ANS holder or block
Pack Quantity
1
Warranty
12 months

Selection and Fitment Tips

  • Match amperage: Replace like-for-like at 150A unless the equipment maker specifies otherwise.
  • Match the holder: Use an ANS compatible holder or block. ANS fuses do not fit MIDI, ANL or blade holders.
  • Location: Mount the holder close to the battery to protect the entire cable run.
  • Repeated blows: If a replacement opens again, diagnose wiring faults or overload rather than increasing the fuse rating.

Why Choose Narva 53816?

It delivers dependable, low-resistance protection in a compact bolt-down format, ideal for modern high-current accessory installs where space, efficiency and serviceability matter.

Model # 53816
Barcode # 09314464538162

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is Narva 53816?
A 150A ANS bolt-down strip fuse designed to protect high-current 12V and 24V circuits in automotive and marine systems.
What is the voltage rating of this fuse?
32V DC. Suitable for 12V and 24V applications when installed in an ANS compatible holder or block.
Which holders or blocks fit Narva 53816?
Use Narva ANS holders or ANS-capable distribution blocks such as 54470 and 54472. It will not fit blade, MIDI or ANL holders.
Where should I mount the ANS fuse in the circuit?
As close to the battery or power source as practical so the entire cable run is protected from short circuits.
Typical uses for a 150A ANS fuse?
High draw DC distribution, larger inverters, winches and accessory feeds that specify 150A protection. Follow the equipment maker’s rating.
How do I choose the correct rating for my cable size?
Fuse to protect the smallest cable in the circuit. Select a value at or below the cable’s continuous ampacity and suitable for inrush and running current.
Can I upsize if a 150A fuse keeps blowing?
No. Repeated operation indicates a fault or overload. Inspect for shorts, damaged insulation, undersized cable or incorrect settings first.
Is there a correct orientation when installing an ANS fuse?
ANS fuses are non-directional. Ensure clean, flat contact surfaces and tighten the hardware securely for a low resistance connection.
What materials are used in Narva 53816?
Copper alloy element with tin plating in a compact ANS footprint with an inspection window for quick visual checks.
How many fuses are in the pack and what is the warranty period?
Pack quantity is 1. Warranty is 12 months.
