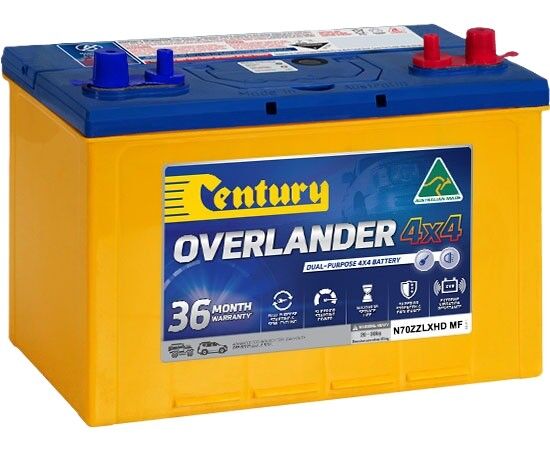

Century Overlander 4x4 N70ZZLXHDMF Dual Purpose Battery

12V • 100Ah • 760 CCA • Right Hand Positive • Twin Terminal

Product Overview

The Century Overlander 4x4 N70ZZLXHDMF is an Australian-made powerhouse designed specifically for the rigorous demands of off-road touring and heavy-duty SUV applications. Built from the ground up to endure extreme climates, this unit is engineered with robust internal components that can withstand the relentless vibration of corrugated tracks and high under-bonnet temperatures. It serves as a dependable primary power source for explorers who need absolute reliability in remote locations.

This battery is a versatile dual-purpose solution, offering the high cranking capacity required for large engines while providing the semi-cycling endurance needed to run multiple 12V accessories. With 760 Cold Cranking Amps (CCA) and a high reserve capacity, it ensures your vehicle has the power to start in the toughest conditions while safely supporting aftermarket gear like fridges and UHF radios.

Key Features

Australian Made Reliability: Engineered and manufactured locally to suit Australia's unique environment and extreme heat.
Platelock™ Technology: A specialised internal construction that locks battery plates in place to combat the damaging effects of heavy impacts and constant vibration.
Superior Strength and Endurance: Features thicker full-frame cast plates and high-porosity separators to provide extra durability and a longer service life.
Twin Terminal Design: Provides both standard posts and threaded terminals, allowing for a cleaner and safer connection for auxiliary 12V equipment.
Mud Rack Protection: Specialist internal support logic that prevents short circuits by isolating paste deposits even during heavy off-road use.
Maintenance Free Design: A sealed labyrinth lid system reduces water loss, removing the need for manual top-ups throughout the life of the battery.

Technical Specifications

Voltage

12V

Cold Cranking Amps (CCA)

760

Reserve Capacity (RC)

180 Mins

Ampere Hours (Ah)

100Ah

Dimensions (L × W × H)

305mm × 171mm × 202mm

Total Height (incl. terminals)

225mm

Approx. Weight

24.30 kg

Polarity

Right Hand Positive

Terminal Type

Twin (STD/Threaded)

Hold-Down

Side Ledge

Warranty (Private Use)

36 Months

Why Choose the Overlander 4x4?

Investing in the Century N70ZZLXHDMF means choosing over 95 years of local innovation and technical expertise. This battery is engineered to strike a precise balance between starting power and cyclic durability, making it the ideal single-battery setup for modern 4WDs. Its industrial-grade construction ensures your equipment stays powered and your engine starts consistently, no matter how far off the beaten track you venture.

Professional Installation: For total peace of mind and optimal performance, the Century N70ZZLXHDMF can be professionally installed by the team at Archer Batteries. Our technicians ensure that your wiring, fusing, and battery securement meet the highest safety standards for off-road touring.

Voltage	12
CCA	760
Amp Hour	100
Length MM	305
Width MM	202
Height MM	202
Terminal Height MM	225
Warranty	36
Assembly	Positive Right
Post type	Dual System Terminals
Battery Type	Calcium
Weight KG	24.3
Model #	N70ZZLXHDMF
Barcode #	09313857335029

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Off-Road Performance & Durability

Q: What makes the Overlander 4x4 better for off-road driving than a standard battery?

The Overlander 4x4 is specifically engineered with Platelock™ technology, which bonds the internal components together to withstand extreme vibration and impact from rough, corrugated tracks. It also features thicker full-frame cast plates and a reinforced polypropylene case for maximum durability in harsh environments.

Q: Is the Century N70ZZLXHDMF made in Australia?

Yes. This battery is designed and built right here in Australia by Century, a manufacturer with over 95 years of local expertise. It is specifically tailored to handle the extreme heat and demanding conditions of the Australian outback.

Dual Purpose & Electrical Usage

Q: What does "Dual Purpose" mean for my 4WD setup?

A dual-purpose battery like the Overlander 4x4 is designed to do two jobs: providing the high bursts of power (760 CCA) required to start large engines, while also possessing the "semi-cycling" capability to power auxiliary accessories like fridges, lights, and UHF radios.

Q: How do the twin terminals work?

The battery is equipped with dual terminal posts. The standard posts are used for vehicle engine starting, while the secondary threaded terminals allow you to connect 12V accessories cleanly and safely without cluttering the main starting cables.

Technical Specifications & Polarity

Q: What is the polarity of the N70ZZLXHDMF?

This model features a Right Hand Positive terminal layout. It is essential to verify that this matches your vehicle's existing cable configuration and battery tray before installation.

Q: Is this battery maintenance-free?

Yes. The N70ZZLXHDMF is a sealed Maintenance Free (MF) battery. It utilises a double-labyrinth lid technology that helps reduce water loss, so you do not need to manually top up electrolyte levels during its service life.

Warranty & Installation

Q: What is the warranty period for this battery?

The Century Overlander 4x4 N70ZZLXHDMF comes with a comprehensive 36-month nationwide warranty for private use applications.

Q: Can Archer Batteries install this for me?

Absolutely. The team at Archer Batteries can professionally install the Century N70ZZLXHDMF to ensure your 12V system is wired correctly for off-road touring and that the battery is securely mounted in your engine bay.
