12.8V 25.2Ah lithium iron phosphate (LiFePO4) rechargeable battery & charger kit for use with golf buggies.

4S7P-Cylindrical Construction

Specifications:

  • Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
  • Max. continuous discharge current: 30A
  • Charge voltage: 14.2V - 14.6V (14.2V recommended)
  • Standard charge current: 5.0A
  • Max. cont. charge current: 5.0A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Nil
  • Parallel Connection: Nil

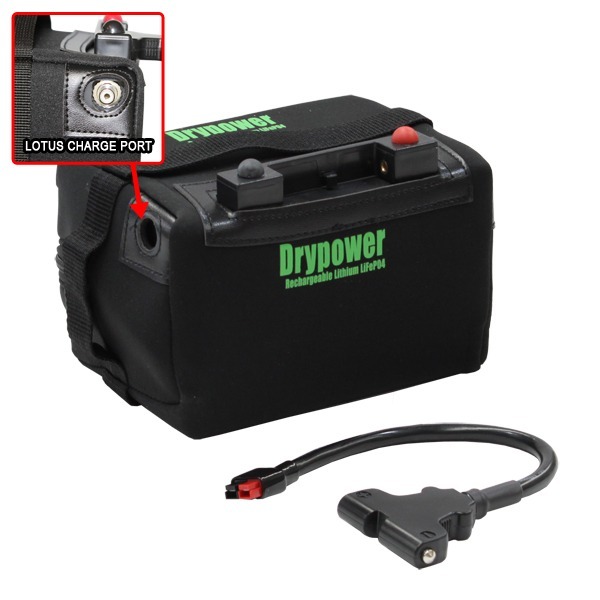

Kit comes with:

  • 12V 25.2Ah LiFePO4 Battery
  • Neoprene protective case
  • T-Bar to Anderson PP Output lead
  • Battery charger with Lotus Plug (which allows you to recharge the battery without disconnecting or removing the battery from the cart)

Important Information:

This Drypower Lithium Iron Phophate battery has been designed for use in Golf Buggies.
No series or parallel connection allowed.

*See Product Manual or Datasheet for more information

Data Sheet

Voltage 12.8
Amp Hour 25.2
Length MM 127.6
Width MM 168
Height MM 102
Battery Type Lithium LiFePO4
Weight KG 2.8
Model # 12LFP25TB
Barcode # 09319632530405
