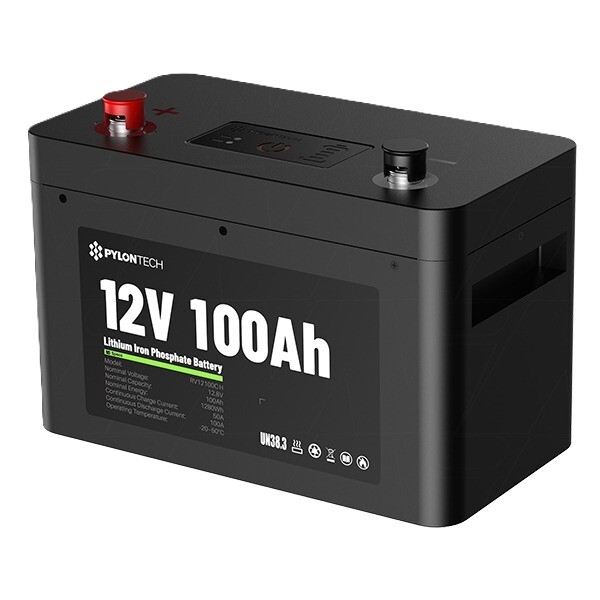

Pylontech RV12100CH 12.8V 100Ah LiFePO4 Battery

The Pylontech RV12100CH is a 12.8V 100Ah lithium iron phosphate (LiFePO4) battery engineered to replace traditional deep-cycle lead-acid batteries in RVs, caravans, marine vessels, off-grid cabins, and more. Designed for durability and high efficiency, this battery provides over 4,000 cycles, up to 30% higher energy density than standard LiFePO4 units, and is 50% lighter than an equivalent lead-acid battery. An advanced built-in BMS ensures intelligent protection, while the integrated heating film enables charging even in sub-zero temperatures. Up to eight batteries can be paralleled for expanded storage, making it a flexible choice for a range of off-grid and mobile power needs.

Key Features

  • Long cycle life: Over 4,000 cycles for maximum reliability and value.

  • Advanced BMS: Protects against over-voltage, under-voltage, over-current, temperature extremes, and short circuits.

  • High energy density: 30% more energy density than standard LiFePO4 batteries.

  • Self-heating function: Built-in heating film for safe charging below freezing.

  • Lightweight: 50% lighter than comparable lead-acid batteries.

  • Parallel capable: Connect up to 8 batteries (max 1S8P, 800Ah/10.24kWh system).

  • Low self-discharge: Less than 3% per month, supports 12+ months storage when disconnected.

  • Certified safe: UN38.3, IEC62619, MSDS compliance.

  • User-friendly: LED SoC indicators, simple push-button operation, and clear safety instructions.



Specification Value
Nominal Voltage 12.8V
Nominal Capacity 100Ah (1280Wh)
Max Continuous Discharge Current      100A
Peak Discharge Current 200A (10 seconds)
Max Continuous Charge Current 100A
Recommended Charge Current ≤50A
Recommended Charge Voltage 14.0V–14.4V
Cycle Life >4000 cycles
Operating Temp (Discharge) -20°C to +50°C
Operating Temp (Charge) -20°C to +50°C (with heater)
Storage Temp (1 month) -20°C to +60°C
Dimensions (L x W x H) 300 x 160 x 210 mm
Weight Approx. 12 kg
Terminal Type M8 x 1.25 x 14 mm
Terminal Torque 8 ± 1 Nm
Case Material Metal
IP Rating IP20
Max Batteries in Parallel 8 (1S8P)
Cell Chemistry LiFePO4
Design Life ≥10 years







Data Sheet

User Manual

Nominal Voltage12.8
Amp Hour100
Length MM300
Width MM160
Height MM210
Warranty36
Battery TypeLithium LiFePO4
Weight KG12.0
Model # RV12100CH

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is the Pylontech RV12100CH?
It is a 12.8V 100Ah lithium iron phosphate (LiFePO4) battery designed to replace deep-cycle lead-acid batteries in RVs, caravans, marine, and off-grid applications.
How many cycles can the RV12100CH provide?
The battery delivers over 4,000 charge/discharge cycles, ensuring a long lifespan.
Can I use the RV12100CH in cold environments?
Yes, the built-in heating film allows charging even when temperatures drop below 0°C, making it suitable for all seasons.
How many RV12100CH batteries can be connected together?
You can connect up to 8 batteries in parallel to create a larger energy storage system (up to 800Ah/10.24kWh).
What is the maximum continuous discharge current?
The battery supports up to 100A continuous discharge and 200A peak (for 10 seconds).
What safety features does the battery have?
It features a built-in Battery Management System (BMS) that provides automatic protection against over-voltage, under-voltage, over-current, temperature extremes, and short circuit.
Is the Pylontech RV12100CH easy to install?
Yes, it is designed for straightforward installation, with M8 terminals and clear safety instructions. Use only recommended cables and accessories for best results.
How should I store the battery when not in use?
Store the battery between 10°C and 40°C at a charge level of 40–70%. Recharge at least every six months during storage.
What certifications does the RV12100CH have?
It is certified to UN38.3, IEC62619, and MSDS for safety, transport, and environmental compliance.
What is the warranty period?
Design life is ≥10 years. Please confirm with your distributor for specific warranty terms.
