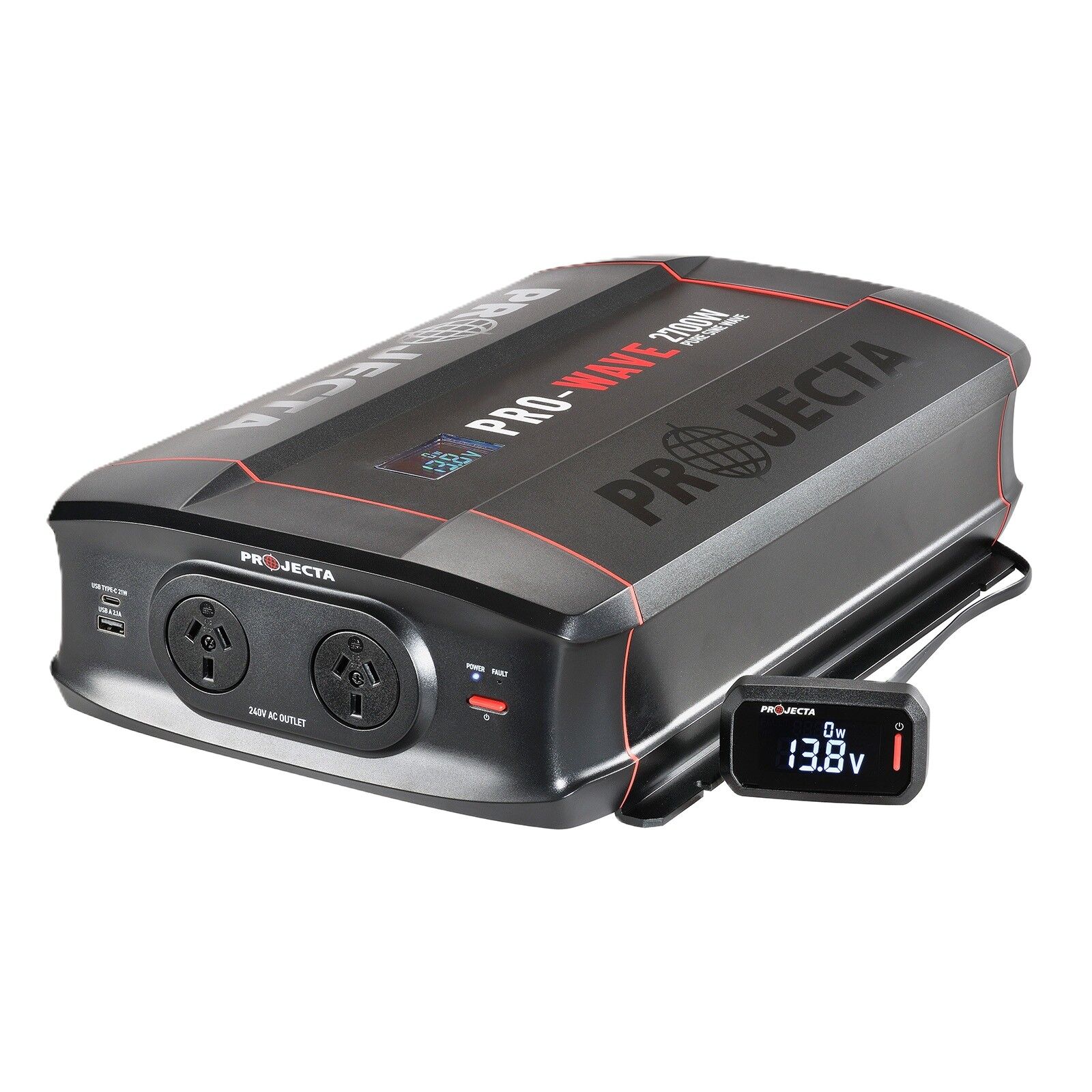

Projecta PW2700 12V Pure Sine Wave Inverter – 2700W Continuous Output

The Projecta PW2700 is a high-capacity 12V pure sine wave inverter designed to deliver clean, reliable 240V power wherever you need it. With a massive continuous output of 2700W and peak surge capacity of 5400W, it's ideal for powering high-demand appliances like air conditioners, kettles, fridges, power tools, and entertainment systems in off-grid, RV, or mobile workshop environments.

This Projecta 2000W inverter class unit combines advanced protection features, efficient power conversion, and rugged build quality. Whether you're touring, working remotely, or setting up off-grid power, the PW2700 provides dependable performance.

Key Features

• 2700W Continuous / 5400W Surge Output
  Power demanding appliances with confidence, including induction cookers, microwaves, or air compressors.

• Pure Sine Wave Output
  Delivers clean, stable 240V AC power that’s safe for sensitive electronics such as laptops, TVs, CPAP machines, and more.

• Dual USB Charging
  Includes 1 x USB-C (21W) and 1 x USB-A (2.1A) for convenient charging of portable devices.

• Thermostatic Cooling Fan
  Automatically adjusts speed based on temperature and load to maintain performance and reduce noise.

• LCD Display with Remote
  Monitor voltage, power output, and fault conditions via the included remote display (PWREMOTE-1).

• Built-In Protection
  Includes short circuit, overload, over-temperature, under/over-voltage, and low battery shutdown protections.

• Heavy-Duty Construction
  Aluminium body with plastic end caps. Includes 50mm² battery cables (1.1m) pre-terminated with lugs.

Technical Specifications

• Input Voltage: 12V DC

• Output Voltage: 240V AC / 50Hz

• Continuous Output: 2700W

• Surge Output: 3240W (≤10 mins), 5400W (≤1 sec)

• AC Outlets: 2 x 10A sockets

• USB Ports: 1 x USB-C (21W), 1 x USB-A (2.1A)

• Current Draw (Max): 265A

• No Load Current: <1.3A

• Low Battery Shutdown: 9.9V (±0.3V)

• Low Battery Alarm: 10.5V (±0.3V)

• Thermal Shutdown: 65°C (±5°C)

• Output Waveform: Pure Sine Wave

• Recommended Battery Size: 70Ah and above

• Minimum Battery Size: 55Ah

• Dimensions (L x W x H): 483 x 272 x 114 mm

• Weight: 7.45 kg

• Warranty: 3 Years

Installation Notes

The inverter should be installed with the supplied 50mm² battery cable. A 300A fuse should be fitted on the positive lead as close to the battery as possible. Allow 50cm clearance at the fan end for ventilation. The included PWREMOTE-1 LCD remote makes it easy to control and monitor inverter output from inside a vehicle or cabin.
