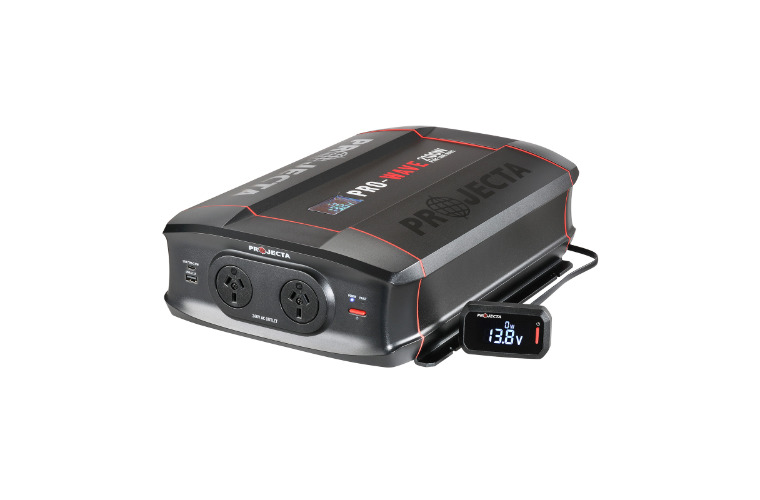

Projecta PW2100 12V Pure Sine Wave Inverter – 2100W Continuous Output

The Projecta PW2100 is a powerful and reliable inverter designed for those who need dependable 240V power from a 12V battery system. Delivering 2100W of continuous pure sine wave output and handling surges up to 4200W, it’s built to run heavy-duty appliances like power tools, microwaves, kettles, and small air conditioners with ease—whether you're off-grid, in a 4WD, caravan, or on a remote job site.

This Projecta 2000W inverter features a high-efficiency design, smart safety protections, and the convenience of remote monitoring, making it an excellent choice for serious mobile and off-grid power setups.

Key Features

• 2100W Continuous Output / 4200W Peak Surge
  Run demanding appliances including fridges, compressors, power tools, and more.

• Pure Sine Wave Output
  Safe for sensitive electronics such as laptops, TVs, and medical equipment.

• Dual USB Charging Ports
  Charge mobile devices with integrated USB-C (21W) and USB-A (2.1A) ports.

• Remote LCD Display Included
  Monitor voltage, output wattage, and fault conditions remotely with the supplied PWREMOTE-1.

• Thermostatic Cooling Fan
  Automatically adjusts to load and temperature, helping extend lifespan and reduce noise.

• Built-in Protection Systems
  Includes low voltage alarm and shutdown, over-voltage protection, overload shutdown, over-temperature shutdown, and short circuit protection.

• Robust Construction
  Aluminium housing with plastic end caps, includes 1.1m of 35mm² battery cable pre-terminated with lugs.

Technical Specifications

• Input Voltage: 12V DC

• Output Voltage: 240V AC / 50Hz

• Continuous Output: 2100W

• Surge Output: 2520W (≤10 min), 4200W (≤1 sec)

• Output Waveform: Pure Sine Wave

• AC Outlets: 2 x 10A

• USB Ports: 1 x USB-C (21W), 1 x USB-A (2.1A)

• Max Current Draw: 206A

• No Load Current Draw: <1.2A

• Thermal Shutdown: 65°C (±5°C)

• Low Battery Shutdown: 9.9V (±0.3V)

• Restart Voltage: 12V

• Dimensions (L x W x H): 442 x 272 x 114 mm

• Weight: 6.2 kg

• Ideal Battery Size: 110Ah and above

• Minimum Battery Size: 105Ah

• Included Cable: 1.1m, 35mm² with lugs

• Warranty: 3 Years

The inverter should be installed with the supplied 35mm² cable, and a 250A fuse should be fitted on the positive lead as close to the battery as possible. Ensure at least 50cm of clearance from the fan end for proper ventilation. The included PWREMOTE-1 allows remote operation and monitoring, making it convenient for use in caravans, campers, and 4WD installations.
