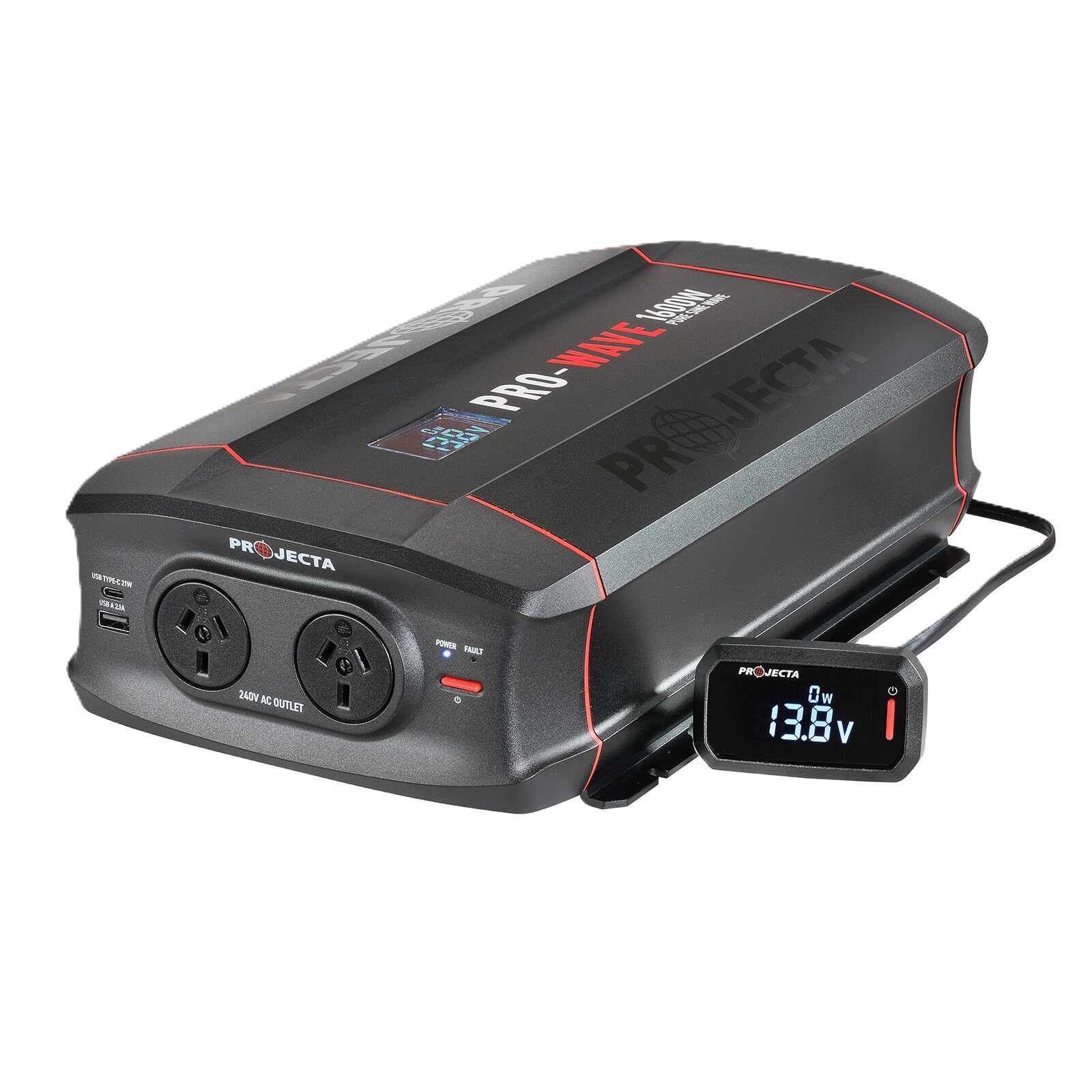

Projecta PW1600 12V Pure Sine Wave Inverter – 1600W Continuous Output

The Projecta PW1600 delivers reliable 240V power in a compact and efficient package. With 1600W of continuous output and a surge capacity of 3200W, it’s ideal for off-grid and vehicle setups needing to power appliances like fridges, fans, laptops, chargers, and light tools.

As part of the Projecta 1600W inverter class, the PW1600 is designed with pure sine wave output for compatibility with sensitive electronics. Its rugged aluminium build, smart cooling system, and full suite of safety protections make it a practical choice for caravans, 4WDs, and mobile workstations.

Key Features

  • 1600W Continuous Output / 3200W Surge Capacity
    Handles common 240V devices including laptops, coffee machines, lighting, fans, and tools.

  • Pure Sine Wave Output
    Delivers clean, stable 240V AC that’s safe for sensitive equipment and appliances.

  • Remote Display & Control
    Includes PWREMOTE-1 for remote monitoring of voltage, load, and faults.

  • USB Charging Ports
    Features 1 x USB-C (21W) and 1 x USB-A (2.1A) to charge phones, tablets, and other devices.

  • Thermostatically Controlled Cooling Fan
    Automatically activates based on load and temperature for quiet, efficient operation.

  • Built-In Safety Protection
    Overload, short circuit, high/low voltage, and over-temperature protection included.

Technical Specifications

  • Input Voltage: 12V DC

  • Output Voltage: 240V AC / 50Hz

  • Continuous Output: 1600W

  • Surge Output: 1920W (≤10 minutes), 3200W (≤1 second)

  • AC Output Sockets: 2 x 10A

  • USB Ports: 1 x USB-C (21W), 1 x USB-A (2.1A)

  • Max Current Draw: 157A

  • No Load Current Draw: <1.2A

  • Low Battery Alarm / Shutdown: 10.5V / 9.9V (±0.3V)

  • Over Voltage Shutdown: 15.2V (±0.3V)

  • Thermal Shutdown: 65°C (±5°C)

  • Dimensions (L x W x H): 420 x 220 x 104 mm

  • Weight: 4.9 kg

  • Supplied Cable: 1.1m of 25mm² cable with lugs

  • Minimum Battery Size: 80Ah

  • Recommended Battery Size: 105Ah and above

  • Warranty: 3 Years

Installation Notes

Install the inverter using the supplied 25mm² battery cable. Fit a 175A fuse on the positive lead near the battery. Mount in a dry, well-ventilated location with 50cm clearance at the fan end. The included LCD remote allows convenient system monitoring and control from inside a cabin or vehicle.

Specifications

Instruction Manual

Voltage12
Length MM420
Width MM220
Height MM104
Warranty36
Weight KG4.9
Model # PW1600

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is the continuous power output of the Projecta PW1600?
The PW1600 provides 1600W of continuous pure sine wave power output.
How much surge power can the PW1600 handle?
It can handle up to 1920W for 10 minutes and up to 3200W for startup surges lasting up to 1 second.
What type of AC output does the PW1600 produce?
It produces pure sine wave 240V AC output at 50Hz, suitable for all standard appliances.
Is the PW1600 safe for sensitive electronics?
Yes, the pure sine wave output is safe for laptops, TVs, medical devices, and other sensitive electronics.
Does it include USB charging ports?
Yes, it includes 1 x USB-C (21W) and 1 x USB-A (2.1A) ports for charging devices.
What is the maximum current draw of the PW1600?
The maximum current draw is 157A at full load.
What cable size is supplied with the inverter?
It includes 1.1m of 25mm² battery cable with pre-terminated lugs.
What size fuse is recommended for the PW1600?
A 175A fuse is recommended for use with the PW1600 inverter.
Does the inverter include a remote display?
Yes, it includes the PWREMOTE-1 LCD display for remote control and monitoring.
What are the inverter's dimensions and weight?
It measures 420 x 220 x 104 mm and weighs 4.9 kg.
What battery size is ideal for the PW1600?
The ideal battery size is 105Ah or larger, with a minimum of 80Ah.
What kind of protection features are built in?
It includes protection for low/high voltage, overload, over-temperature, and short circuit.
Does the PW1600 have an internal cooling fan?
Yes, it features a thermostatically controlled fan that activates based on load and temperature.
What kind of display does the inverter include?
The PW1600 comes with an LCD remote display showing voltage, load, and fault status.
Can I install the PW1600 outdoors?
No, it should be installed in a dry, well-ventilated, indoor location protected from weather.
How far should the inverter be mounted from the battery?
It is recommended to mount the inverter as close as possible to the battery to minimise voltage drop.
What approvals or certifications does the PW1600 have?
It meets Electrical Safety and EMC certifications and is classified as an equipotentially bonded inverter.
Where is the Projecta PW1600 manufactured?
The inverter is manufactured in China under Projecta’s quality standards.
What is the warranty period for the PW1600?
It includes a 3-year manufacturer's warranty.
