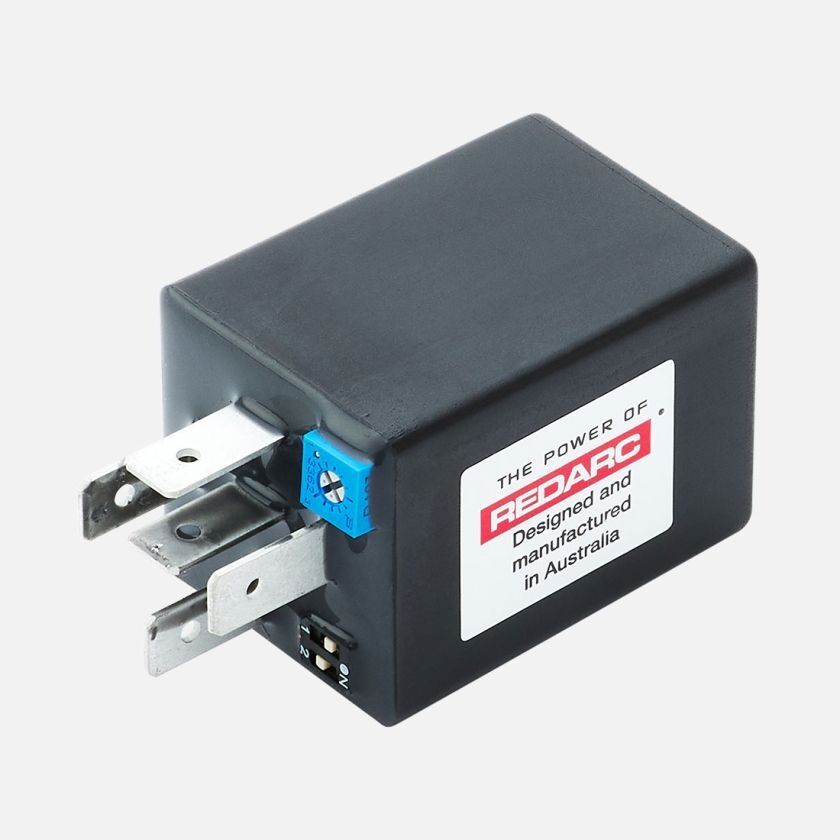

REDARC TIM05 Multi-function Timer

Product Overview

The REDARC TIM05 is a compact, multi-function timer designed for automotive applications that require precise control of timed outputs. Compatible with both 12V and 24V negative ground systems, it installs directly into standard automotive relay bases, making it an easy upgrade for many vehicle electrical setups.

The TIM05 provides two timing modes: Delayed Turn OFF and Temporary Output at Turn ON. Its adjustable timing range from 1 to 60 seconds or 1 to 60 minutes allows customisation for tasks such as lighting delay, turbo cooldown, cooling fan run-on, and accessory control.

Key Features

  • Supports 12V and 24V negative ground automotive systems
  • Two operating modes: Delayed Turn OFF and Temporary Output at Turn ON
  • Adjustable timing from 1–60 seconds or 1–60 minutes
  • Simple DIP switch configuration and potentiometer control
  • Direct plug-in design for standard automotive relay bases
  • 10A direct load rating with optional external relay for higher loads

Technical Specifications

System Compatibility
12V / 24V negative ground
Timing Range
1–60 sec or 1–60 min
Operating Modes
Delayed Turn OFF / Temp Output at Turn ON
Maximum Load
10A
Dimensions
30 × 30 × 42 mm
Pin Configuration
30, 87, 87a, 85, 86
Recommended Use
Automotive timed-output control
Warranty
2 years

Why Choose the TIM05?

The TIM05 is ideal for installations needing timed run-on control or a momentary activation when the system powers up. Its relay-style design makes installation simple, and its wide adjustment range suits a variety of automotive setups.

With dependable REDARC build quality, the TIM05 delivers accurate, repeatable timing performance for critical accessory control.

Instruction Manual

Warranty 24
Model # TIM05
Barcode # 09338628001682

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What systems is the TIM05 compatible with?
The TIM05 works with 12V and 24V negative ground automotive systems.
What timing modes does the TIM05 provide?
It offers Delayed Turn OFF and Temporary Output at Turn ON modes.
How do I adjust the timing interval?
Timing is adjusted using two DIP switches and the onboard potentiometer.
What is the maximum load rating?
The TIM05 can directly switch loads up to 10A. Higher loads require an external relay.
Does it plug into standard relay bases?
Yes, the TIM05 is designed to plug directly into standard automotive relay bases.
Can I use the TIM05 as a turbo timer?
Yes, the Delayed Turn OFF mode makes it suitable for turbo cooldown functions.
Can I switch between seconds and minutes?
Yes. DIP switch 2 selects seconds (OFF) or minutes (ON) mode.
Can the TIM05 switch ground instead of positive?
No. It can only switch positive output. Ground must remain permanent on pin 85.
What does pin 85 do?
Pin 85 provides the permanent negative ground connection required for operation.
Should I choose the TIM05 or TIM06?
Choose the TIM05 for delayed shut-off or momentary activation at power-on. Choose the TIM06 for delayed activation after power-on.
