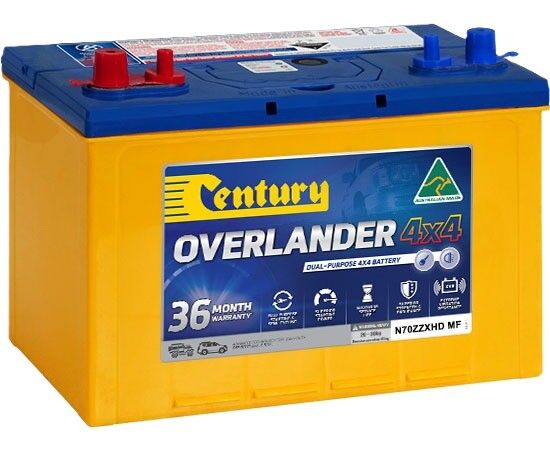

Century Overlander 4x4 N70ZZXHDMF Dual Purpose Battery

12V • 100Ah • 760 CCA • Left Hand Positive • Twin Terminal

Product Overview

The Century Overlander 4x4 N70ZZXHDMF is a high-performance power solution engineered specifically for the extreme challenges of off-road touring and heavy-duty SUV applications. Manufactured in Australia, this unit is built with robust internal components designed to survive relentless vibration from corrugated outback tracks and high under-bonnet temperatures. It serves as a primary energy source for explorers who require absolute reliability when venturing far from the beaten path.

This battery is a versatile dual-purpose solution, providing the high cranking capacity required for large engines while offering the semi-cycling endurance needed to run 12V accessories. With 760 Cold Cranking Amps (CCA) and a high reserve capacity, it ensures your vehicle starts consistently in tough conditions while reliably supporting gear like portable fridges and lighting systems.

Key Features

Australian Made Reliability: Built specifically to handle Australia's unique climate and the demanding off-road environment.
Platelock™ Technology: Advanced internal construction that secures battery plates in place to combat the damaging effects of vibration.
Thicker Full-Frame Cast Plates: Provides added strength and superior resistance to corrosion for a significantly longer service life.
Twin Terminal Design: Equipped with standard posts and threaded terminals to allow for the safe connection of multiple accessories.
Mud Rack Protection: Specialist internal support that isolates paste deposits to prevent short circuits during heavy off-road use.
Sealed Maintenance Free: Features a double-labyrinth lid that reduces water loss and removes the need for manual top-ups.

Technical Specifications

Voltage

12V

Cold Cranking Amps (CCA)

760

Reserve Capacity (RC)

180 Mins

Ampere Hours (Ah)

100Ah

Dimensions (L × W × H)

305mm × 171mm × 202mm

Total Height (incl. terminals)

225mm

Approx. Weight

24.30 kg

Polarity

Left Hand Positive

Terminal Type

Twin (STD/Threaded)

Warranty (Private Use)

36 Months

Why Choose the Overlander 4x4?

Choosing the Century Overlander 4x4 N70ZZXHDMF means investing in over 95 years of Australian technical expertise. This battery strikes the perfect balance between high starting power and the cyclic durability required for modern 4WD setups. Its industrial-grade construction ensures your engine starts reliably and your essential gear stays powered, no matter how far off-road your journey takes you.

Professional Installation: For total peace of mind and optimal performance, the Century N70ZZXHDMF can be professionally installed by the team at Archer Batteries. Our technicians ensure that your wiring, fusing, and battery securement meet the highest safety standards for off-road touring.

Voltage	12
CCA	760
Amp Hour	100
Length MM	305
Width MM	171
Height MM	202
Terminal Height MM	225
Warranty	36
Assembly	Positive Left
Post type	Dual System Terminals
Battery Type	Calcium
Weight KG	24.3
Model #	N70ZZXHDMF
Barcode #	09313857335012

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Off-Road Durability & Tech

Q: What is Platelock™ Technology?

Platelock™ technology is a specialised internal construction used in Century 4x4 batteries to bond internal components together. This provides extreme vibration resistance, protecting the battery from the heavy impacts and corrugated roads found in the Australian outback.

Q: Is the Century N70ZZXHDMF suitable for extreme heat?

Yes. The Overlander 4x4 is specifically designed and built in Australia to handle excessive under-bonnet temperatures. Its robust full-frame cast plates and advanced lid design minimise water loss in high-heat conditions.

Dual Purpose Usage

Q: What does "Dual Purpose" mean?

A dual-purpose battery is engineered to provide both the high cranking power (760 CCA) required to start large engines and the semi-cycling endurance needed to power auxiliary 12V equipment like portable fridges and spotlights.

Q: Can I connect my accessories directly to this battery?

Yes. The N70ZZXHDMF features a twin terminal design. You can use the standard posts for your main vehicle starting cables and the secondary threaded terminals for a clean, secure connection of multiple 12V accessories.

Specifications & Polarity

Q: What is the polarity of the N70ZZXHDMF?

This specific model features a Left Hand Positive terminal configuration. Please ensure this matches your vehicle's engine bay layout and cable lengths before purchase.

Q: Do I need to maintain water levels in this battery?

No. This is a sealed Maintenance Free (MF) battery. It utilises a labyrinth lid system to significantly reduce electrolyte loss, meaning you never need to add water during its service life.

Warranty & Installation

Q: How long is the private use warranty?

The Century Overlander 4x4 N70ZZXHDMF comes with a comprehensive 36-month nationwide warranty for private use applications.

Q: Can Archer Batteries install this unit for me?

Absolutely. The team at Archer Batteries provides expert installation for all Century products. We ensure your battery is securely mounted and your 12V accessories are connected for maximum safety and off-road performance.
