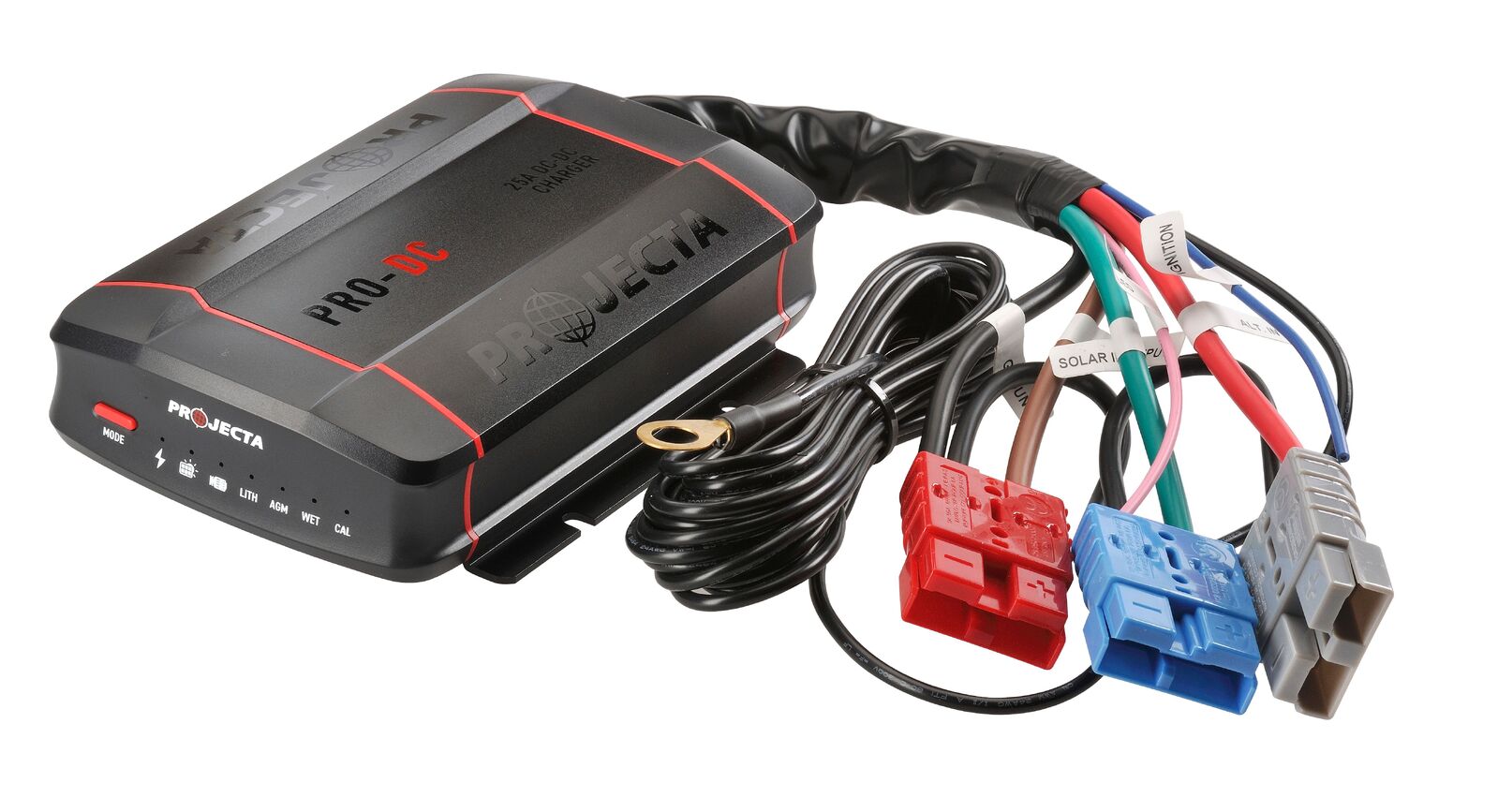

Projecta PDC25 25A Pro-Charge DC-DC Battery Charger

Product Overview

The Projecta PDC25 is a 25A DC-DC charger built for Australian touring, trade and marine setups that can’t afford downtime. It keeps your auxiliary battery charged correctly on the road and at camp by taking power from the alternator while driving and seamlessly switching to solar when parked. That dual-source design means less idling, fewer jump-starts, and more usable power for fridges, lights, pumps, tools and inverters.

Its integrated MPPT solar regulator constantly tracks panel output, recovering energy lost by basic PWM controllers. In practical terms you see faster recoveries after overnight use and better performance in partial shade or winter sun. Pair that with Projecta’s three-stage charge profile (Bulk, Absorption, Float) and calcium equalisation mode and you get full, safe charges without babysitting or risk of overcharge. Battery life improves, capacity holds up, and voltage stays stable under load.

The PDC25 supports Lithium (LiFePO₄), AGM, Wet and Calcium batteries from 75–300Ah, so you can standardise on one charger across vehicles or future-proof a build that may move to lithium later. It also plays nicely with modern, variable-voltage alternators via the ignition input, avoiding the under-charging issues that catch older chargers out.

Built to work where you work, the fully potted electronics and IP67 rating resist dust, water, vibration and heat. Voltage-drop compensation and the included temperature sensor fine-tune charging across long cable runs and under-bonnet installs, which means you get the current you paid for at the battery – not lost in the wiring. Pre-fitted 50A Anderson-style plugs make install and servicing straightforward and secure, reducing labour time and connection failures over corrugations.

Backed by a 5-year manufacturer warranty, the PDC25 delivers dependable performance and strong value for money. Purchase in-store or online from Archer Batteries; our team can also design and install the PDC25 for you.

Features & Benefits

• Dual input charging from alternator and solar for continuous top-up on the move and at camp.
• MPPT solar regulator extracts more energy in low light and partial shade for quicker battery recovery.
• Three-stage charging with calcium equalisation improves battery health and long-term capacity.
• Multi-chemistry support (LiFePO₄, AGM, Wet, Calcium) covers present and future battery choices.
• Smart-alternator compatible using ignition input to prevent under-charging in modern vehicles.
• IP67, fully potted construction resists water, dust, heat and vibration for reliable field use.
• Pre-fitted 50A Anderson-style plugs speed up installation and provide durable, serviceable connections.
• Voltage-drop and temperature compensation deliver correct charge voltage at the battery terminals.
• Comprehensive protections: reverse polarity, over/under-voltage, over-temperature, spark-safe start.
• Five-year warranty and proven Projecta support for confidence on long trips and remote jobs.

Technical Specifications

Install Notes

The Projecta PDC25 is designed for versatile mounting and is suitable for engine bay installation thanks to its fully sealed, IP67-rated construction. For best results, mount it away from direct heat sources such as exhaust manifolds or turbochargers, as charging output will reduce if ambient temperatures exceed 55°C. Use quality cable sized for run length; 8 B&S (8 mm²) is a typical minimum for shorter runs, with heavier cable for longer distances to minimise voltage drop. Fuse both input and output close to the battery (commonly 50A) and attach the supplied temperature sensor directly to the battery for accurate compensation. The pre-fitted Anderson-style plugs simplify placement and later servicing. Archer Batteries can supply, install, and test the system in-house if you prefer professional fitment.
