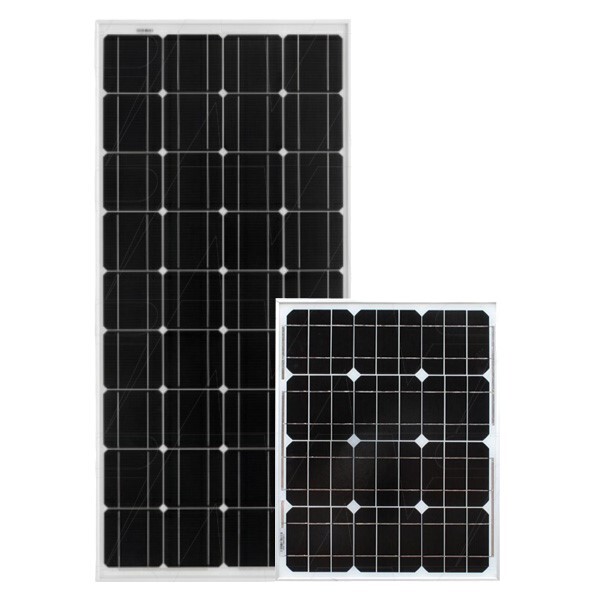

Victron BlueSolar 12V 115W 36 cells 6.04A IP65 Junction Box (PV-LH0808) Monocrystalline Solar Panel 4B SPM041151202

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-Year limited warranty on power output and performance.
  • 5-Year limited warranty on materials and workmanship.
  • Sealed, waterproof, multi-functional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • High power models with pre wired quick-connect system with MC4 (PV-ST01) connectors.

Important Information:

This solar panel comes supplied with:

  • MC4 connectors and
  • 900mm cable
Cell Type Monocrystalline
Panel Type Rigid
Nominal Power (PMPP) 115W
Max Power Voltage (VMPP) 19.0V
Max Power Current (IMPP) 6.04A
Open Circuit Voltage (VOC) 23.32V
Short-Circuit Current (ISC) 6.61A
Max System Voltage 1000V
Number of cells in series 36
Length MM 1030
Width MM 668
Height MM 30
Warranty 60
Weight KG 8
Model # SPM041151202
Barcode # 07190760577652
