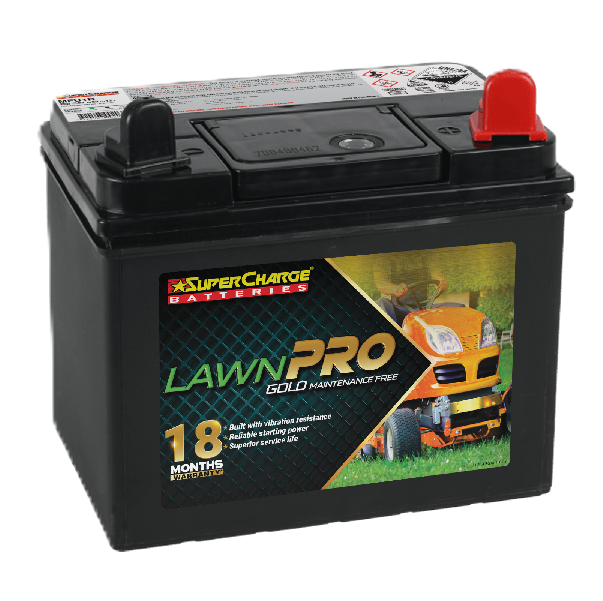

SuperCharge LawnPro MFU1R

12V • 35Ah (20-hr) • 350 CCA • Size U1R • Top-stud (OLT) terminals • Reverse polarity

Product Overview

The SuperCharge LawnPro MFU1R is a sealed, maintenance-free starting battery for ride-on mowers and compact equipment that require the reverse-polarity U1R layout. Its calcium construction provides dependable cranking with low self-discharge, and the sealed case helps keep dust and moisture out—practical for sheds and outdoor storage. Purchase in-store or online from Archer Batteries; our team can also install and test the MFU1R for you.

Key Features

  • Sealed Maintenance-Free (SMF) calcium build—no routine topping up.
  • 350 CCA for reliable starts across the mowing season.
  • Compact footprint to suit common U1R trays and tight bays.
  • Top-stud, Offset Lug Terminal (OLT) posts for secure connections.
  • Built-in charge-indicator eye for quick state-of-charge checks.
  • 18-month warranty (conditions apply).

Technical Specifications

Battery Type
Starting, Sealed Maintenance-Free (SMF Calcium)
Voltage
12V
Capacity
35Ah (20-hour)
Cold Cranking Amps (CCA)
350A @ −18 °C
Dimensions (L × W × H)
196 × 128 × 159 mm
Total Height
~184 mm
Case / Size Code
U1R (reverse polarity)
Terminal Type
Top-stud, Offset Lug Terminal (OLT)
Approx. Weight
~9.0 kg
Charge Indicator
Hydrometer eye
Warranty (private/commercial)
18 months (conditions apply)

Why Choose MFU1R?

Choose the MFU1R when your mower specifies a U1-class battery with reversed terminals. It offers the same compact size and dependable starting as MFU1, with the polarity layout to match U1R trays and cable routing. The sealed calcium design keeps ownership simple and helps deliver consistent starts when maintained and charged correctly.

Buy online or in-store at Archer Batteries—installation and recycling of your old battery available.

CCA 350
Amp Hour 35
Length MM 196
Width MM 128
Height MM 159
Terminal Height MM 184
Warranty 18
Assembly Positive Right
Post type Offset Lug Terminal
Battery Type Calcium
Weight KG 8.2
Barcode # 09324503002035
Unit Of Measure 1

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What equipment is the SuperCharge MFU1R designed for?
MFU1R is a compact reverse-polarity U1R mower battery for ride-on mowers, garden tractors and small plant that specify a U1R case. Always check tray size, hold-down and cable reach before purchase.
What’s the difference between MFU1 and MFU1R?
Performance is similar; the key difference is terminal orientation. MFU1 uses the standard U1 layout, while MFU1R mirrors the posts (reverse polarity) to suit mowers wired the other way. Choose the version that matches your cable routing.
What are the MFU1R dimensions and terminal type?
Approx. 196 × 128 × 159 mm (L × W × H), total height ~184 mm. Case code U1R with top-stud, Offset Lug Terminal (OLT) posts. Confirm terminal clearances and clamp style before installing.
Is the MFU1R maintenance-free?
Yes. It’s a sealed maintenance-free (SMF calcium) starting battery—no routine topping up. Keep terminals clean and tight, and maintain charge if the mower is stored.
What are the cranking and capacity ratings?
Typical ratings are around 350 CCA and 35 Ah (20-hour rate), providing reliable starts for correctly sized ride-on mowers and garden equipment.
Can I use MFU1R for deep-cycle loads?
MFU1R is a starting battery intended for short, high-current cranking. For frequent deep discharges, choose a dedicated deep-cycle battery.
How should I charge the MFU1R during off-season storage?
Use a compatible 12 V smart charger with lead-acid/Calcium mode and maintenance (float). If not on a maintainer, top up every 4–6 weeks to reduce sulphation.
Does Archer Batteries offer installation and testing?
Yes. Buy online or in-store and we can install MFU1R, verify charging voltage, and dispose of your old battery responsibly.
What’s the warranty on MFU1R?
18-month warranty (conditions apply). Keep your proof of purchase and ensure the mower’s charging system is within specification.
How do I confirm polarity before connecting the battery?
With the battery label facing you, identify the + (red) and – (black) cables and confirm they reach the matching posts on a U1R layout. Never rely on memory—check markings on both cables and battery.
Is the MFU1R spill-resistant and sealed?
Yes. It’s a sealed maintenance-free design for typical mower orientations. Always keep upright during transport and follow standard safety precautions.
Can Archer Batteries recycle my old mower battery?
Absolutely. We accept spent lead-acid batteries for safe recycling. Drop it in when collecting your new MFU1R or during installation.
