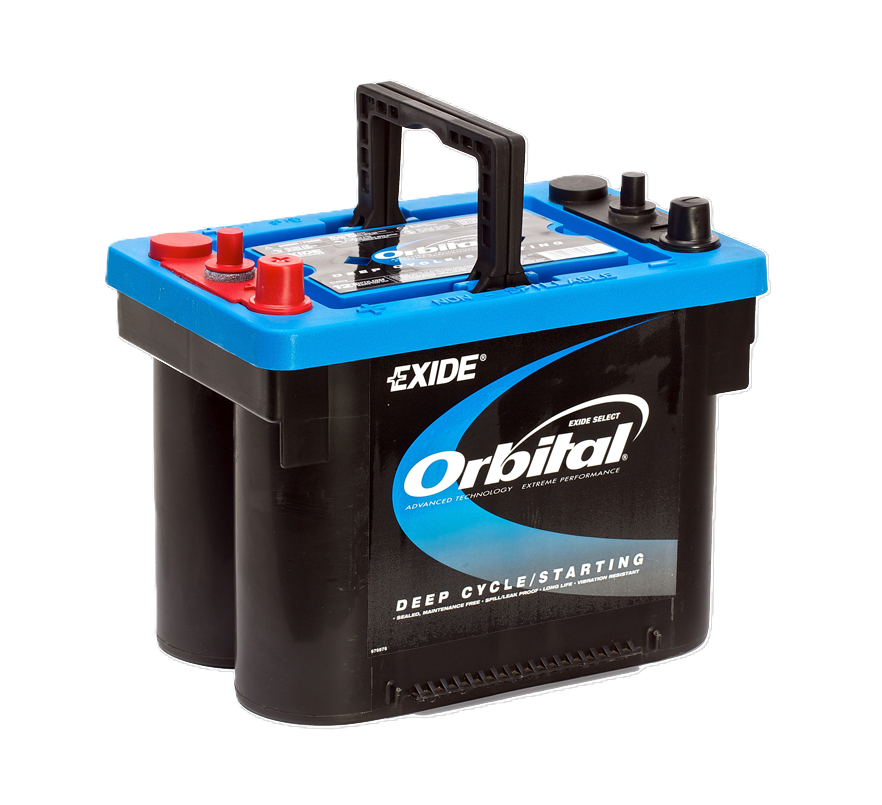

Exide Orbital ORB34DC-48 Dual Purpose Marine AGM Battery

12V • 50Ah • 750 CCA • AGM Spiral-Wound Design

Product Overview

The Exide Orbital ORB34DC-48 is a high-performance dual purpose AGM battery, built for marine environments where both strong starting power and dependable cycling are essential. Using Exide’s spiral-wound technology, it delivers superior vibration resistance, fast recharge capability, and long service life compared to traditional batteries.

Its sealed AGM design makes it maintenance-free and spill-proof, offering safety and flexibility for a wide range of marine installations, from outboards to onboard electronics.

Key Features

Dual purpose design – starting and cycling power in one battery
AGM spiral-wound construction for durability and vibration resistance
750 CCA for reliable marine engine starts
50Ah capacity with 120 minutes reserve capacity
Fast recharge rates and low self-discharge
Maintenance-free and spill-proof for safe installation

Performance and Durability

The ORB34DC-48 is designed to handle the harsh conditions of marine use. Its spiral cell design offers exceptional resistance to vibration and shock, protecting internal components from damage. The AGM technology reduces the risk of leaks and corrosion, ensuring safe, long-lasting performance in confined or mobile environments.

Compared with conventional flooded batteries, the ORB34DC-48 provides stronger cranking power and improved cycling ability, making it ideal for marine applications where reliability is critical.

Technical Specifications

Battery Type

AGM Spiral-Wound, Maintenance-Free

Voltage

12V

Capacity

50Ah (20-hour)

Cold Cranking Amps (CCA)

750

Reserve Capacity

120 minutes @ 25A

Dimensions (L × W × H)

260 × 173 × 205 mm

Approx. Weight

19.5 kg

Terminal Type

Standard SAE Posts

Warranty (private use)

24 Months

Applications

The Exide Orbital ORB34DC-48 is best suited for:

Boats and marine engines needing reliable starting power
Onboard electronics such as lights, GPS, radios, and pumps
Leisure craft requiring a single battery for starting and cycling duties

Why Choose ORB34DC-48?

The ORB34DC-48 provides premium dual-purpose capability, reducing the need for multiple batteries onboard. Its AGM spiral-wound technology offers enhanced safety, long life, and robust performance in demanding marine conditions.

Trusted under the Exide brand, and backed by a 24-month warranty, it is a smart investment for boaters who value strength, reliability, and peace of mind.

Voltage	12
CCA	750
Amp Hour	50
Length MM	258
Width MM	170
Height MM	203
Warranty	12
Assembly	Positive Left
Post type	Dual System Terminals
Battery Type	AGM
Weight KG	18.5
Model #	ORB34DC-48
Barcode #	09313122901959

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Is the Exide ORB34DC-48 a dual purpose battery?

Yes. The ORB34DC-48 is a dual purpose AGM battery, designed to provide both strong starting power and reliable cycling performance for marine use.

What is the capacity of the ORB34DC-48?

It has a 50Ah (20-hour rate) capacity and around 120 minutes reserve capacity at a 25A discharge.

How much starting power does the ORB34DC-48 deliver?

The ORB34DC-48 delivers approximately 750 Cold Cranking Amps (CCA), suitable for marine engines and demanding conditions.

Is the ORB34DC-48 maintenance-free?

Yes. It uses sealed AGM technology, making it maintenance-free, spill-proof, and safe for use in enclosed spaces.

What makes the Orbital series different from standard batteries?

Exide Orbital batteries use spiral-wound AGM cells, which provide excellent vibration resistance, faster charging, and longer service life than traditional flooded designs.

What are the dimensions of the ORB34DC-48?

The battery measures approximately 260mm long, 173mm wide, and 205mm high.

How heavy is the Exide ORB34DC-48?

It weighs around 19.5kg, making it lighter than many conventional deep cycle batteries with similar performance.

What applications is the ORB34DC-48 suitable for?

It is designed primarily for marine use, powering outboard motors, lights, radios, GPS units, pumps, and other onboard electronics.

Does the ORB34DC-48 recharge quickly?

Yes. Thanks to AGM spiral cell technology, it recharges faster than standard flooded lead-acid batteries.

What is the warranty on the ORB34DC-48?

The Exide Orbital ORB34DC-48 is backed by a 24-month warranty for private use, providing peace of mind and reliability.
