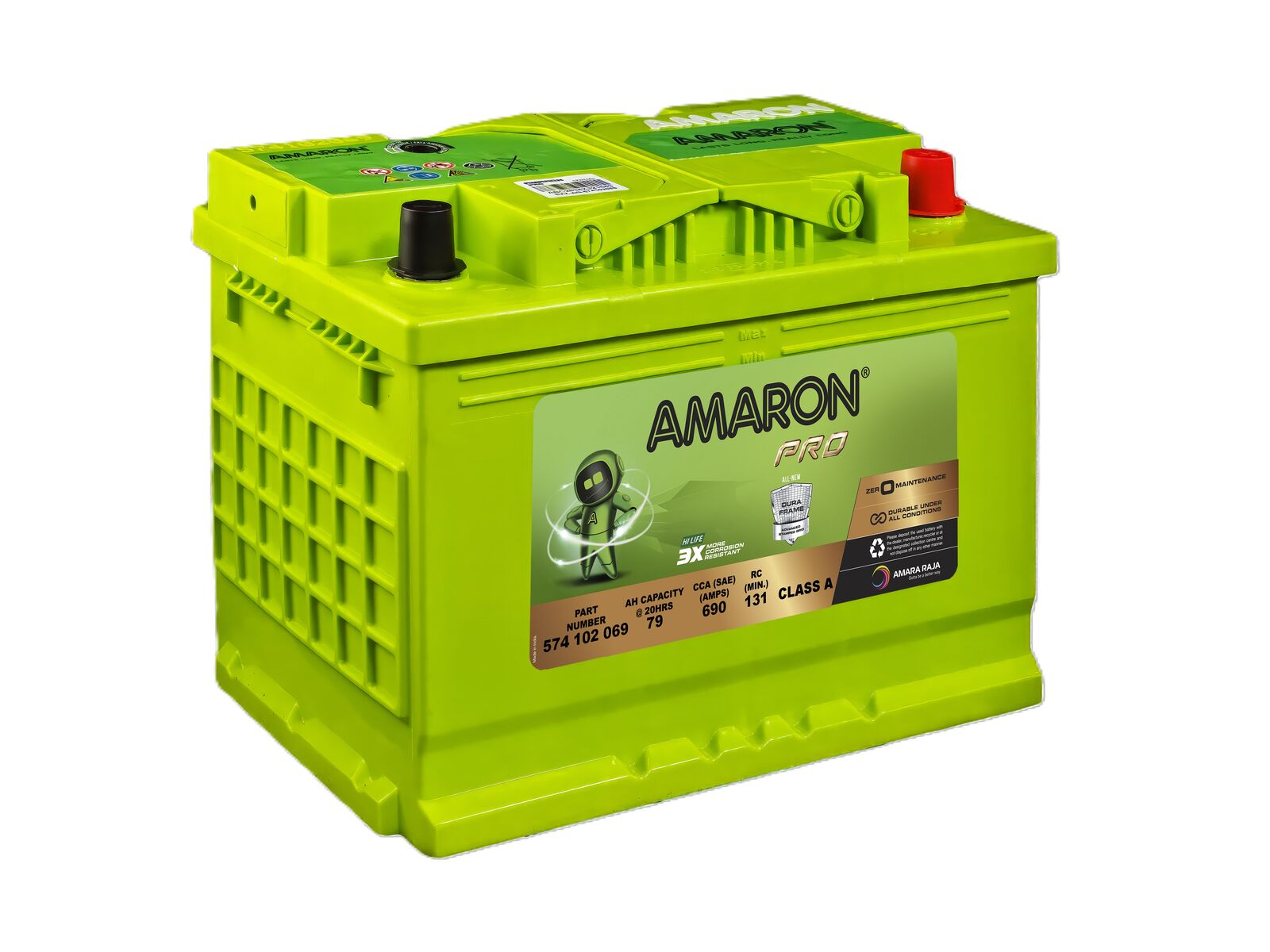

The Amaron DIN74 is a premium, maintenance-free automotive battery designed for vehicles requiring a DIN74 case size. With 74Ah capacity and a 680CCA rating, it delivers dependable starting power.

Built using calcium-silver alloy plates, the Amaron DIN74 offers improved corrosion resistance, lower self-discharge, and a longer service life compared to conventional batteries. Its sealed, spill-proof construction eliminates the need for topping up, while integrated safety features—such as flame arrestors and reinforced casing—provide added peace of mind.

The battery’s vibration-resistant design ensures reliability even in harsh driving conditions. Installation is straightforward thanks to its DIN terminal configuration and compact size. The Amaron DIN74 is ideal for drivers who need consistent power, minimal maintenance, and a battery that can handle modern vehicle demands.

Key Features

  • 74Ah capacity for vehicles with higher electrical loads

  • 680CCA ensures reliable starts in all conditions

  • Calcium-silver technology for extended battery life

  • Maintenance-free, sealed design—no topping up required

  • Built-in flame arrestors and robust casing for safety

  • Vibration-resistant construction



Technical Specifications

  • Voltage: 12V

  • Capacity: 74Ah

  • Cold Cranking Amps (CCA): 680

  • Reserve Capacity: 130 minutes (approx.)

  • Dimensions: 278mm (L) x 175mm (W) x 190mm (H)

  • Polarity: Right hand positive

  • Weight: Approx. 19kg

  • Warranty: 42 months



Voltage12
CCA690
Amp Hour74
Length MM278
Width MM175
Height MM190
Terminal Height MM190
Warranty42
AssemblyPositive Right
Post typeSAE
Battery TypeCalcium
Weight KG20.0
Model # EXX-AG- 574102069

Be The First To Review This Product!

Help other Archer Batteries Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

What is the capacity and CCA of the Amaron DIN74?
It has a capacity of 74Ah and a Cold Cranking Amps (CCA) rating of 680.
Is the Amaron DIN74 battery maintenance-free?
Yes, it is fully sealed and maintenance-free. No topping up of electrolyte is required.
What are the dimensions of the Amaron DIN74?
278mm (L) x 175mm (W) x 190mm (H).
How do I install the Amaron DIN74 battery?
Disconnect the negative terminal first, remove the old battery, secure the DIN74 in place, and connect terminals—positive first, then negative.
What safety features are included with the Amaron DIN74?
It has built-in flame arrestors, reinforced casing, and spill-proof, sealed construction for enhanced safety.
What is the warranty period for the Amaron DIN74?
Typically, the warranty is 42 months.
Is the Amaron DIN74 battery recyclable?
Yes, it should be recycled at an approved battery recycling facility.
